This is division of aircraft I did by their aerodynamic characteristics, primarly interaction of wing and body:
Aircraft with two large engines mounted on swept wing. Other than that, aerodynamics are mostly similar to preceding piston-engine fighters.
Orange Blossom Kikka
Engines sunk into the body, with small air intakes.
Aircraft with tubular body and large, lightly loaded wing. Dependant solely on wing for lift during both level flight and maneuvers. Excellent air superiority aircraft primarly due to low wing loading, but angle-of-attack limited due to the intake on the nose.
Aircraft with tubular body that produces almost no lift during maneuvers, and small, highly-loaded wing that is aerodynamically almost completely separate from body. End result is that aircraft turning performance is entirely dependant on lift from wing. Performance-wise, aircraft in this group are bombers and bomber interceptors, not air superiority aircraft, and are as result inferior to all families of aircraft other than F-4 in air-to-air combat.
Similar to F-101 family, but with square body. Performance is very similar. F-111 would also have been in this group had USAF been stupid enough to keep it as air superiority aircraft.
Swept-back wing mounted low on prominent body. Low degree of wing-body blending. Very bad air superiority aircraft, but good bomber interceptors.
Aircraft with high-position wing and large amount of both body and wing lift when in level flight, but less so during maneuvers. Air intakes are not shielded, which may create problems at high angles of attack. Good dogfighters, interceptors and strike aircraft.
In essence, a mix of F-15 and F-16 families. There is a degree of wing-body blending, and intakes are under the body, helping thrust at high angles of attack. Good dogfighters, interceptors and strike aircraft.
An obvious feature is low-position delta wing with very low degree at best of wing-body blending. Turn performance mostly dependant on wing lift, though well-designed body and high-lift devices can change that to an extent. Primarly supersonic interceptors, though they are also good dogfighters.
Primary feature is large degree of wing-body blending, as well as high-lift devices which help both wing lift and body lift during turn – in form of LEX and/or close-coupled canards. Body lift is high both during turn and in level flight. Result is that aircraft in this group are both good strike aircraft and excellent dogfighters.
F-35 – a mix of F-101 family, F-15 family and F-16 family. Wing is small and highly loaded, and while body does produce some lift, amount produced during maneuvers is lot less than in F-16 family. Amount of wing-body interaction is also smaller. Wing itself is in a similar position to F-15 family. End performance is most similar to F-101 family. Good strike aircraft, but almost useless in air superiority role.
Aerodynamically, F-16 family is best, followed by Su-27 family (very closely), Mirage family, F-15 family, P-80 family, F-86 family, Me-262 family, MiG-23 family and F-101 family (in that order).
43 thoughts on “Aerodynamic families of jet figters”
Lol…for what role?
This is about aerodynamic configuration, not role.
And if you are referring to my conclusion… air superiority.
Mirage F1 has nothing to do with delta wing.
Rafale, in my opinion, has the best aerodynamics characteristics.
Watch the video “Rafale vs F-22” on YouTube…!
It’s magic, no more Mirage F1 in the delta wing family!
I’d like to take this opportunity to ask if anybody has noticed that Lockheed Martin hasn’t done much work on aerodynamics since the Starfighter. I mean if you look at the planform of the F-22 and F-35 (which are for all intents and purposes identical) it’s surprisingly similar to the CL-1200 Lancer which they entered in the LWF competition and lost to General Dynamics F-16. Now the Lancer is an evolution of the Starfighter with slightly larger wing and an anemic LERX.
F-22 is actually similar to F-15 and has LERX which is far from anemic… F-35 is more like very fat F-104 though.
Which begs the question: from an aerodynamic point of view at least wouldn’t the X-32 have been a much better choice then F-35.
Not really. What would have been better choice – by far – is the MicroFighter:
To you have more details about this MicroFighter it’s a very interesting concept?
I manged to dig something up. It’s a concept proposed by Boeing in the 70s. They were to be used in conjunction with a Boeing 747 carrier, that would be able to carry 12 Microfighters, launch and recover them. They were to have been 8,7 meters long and something like 5 meters in wingspan.
Here is a link to a thread in a French forum discussing the matter http://forum.avionslegendaires.net/viewtopic.php?f=5&t=6293 .
Most interesting the last post has several pictures with how the aircraft’s were supposed to be carried and variants of landing gear. Even an air cushion landing gear. If you need help with the translation just say 😀
I suppose the FLX would also be in the F-16 family? Single engine with LEX, blended wing, and close canards?
Other families, I suppose the F-18 would constitute it’s own family? Then the F-14 and F-111 would constitute yet another?
“I suppose the FLX would also be in the F-16 family? Single engine with LEX, blended wing, and close canards?”
“Other families, I suppose the F-18 would constitute it’s own family? Then the F-14 and F-111 would constitute yet another?”
Something like that.
Come to think of it, should the following be considered fighters or bomber interceptors?
F15 and F-22
Maybe Su-27 et all (too big to be great fighters?; maneuverable though)
Mig 25 and Mig 31
Maybe you should split between fighters and bomber interceptors.
Something like that. F-15, F-22, Typhoon, Su-27, MiG-25, MiG-31 would be bomber interceptors, Rafale, Gripen, F-16, MiG-29 would be air superiority fighters.
Hey picard what do you think of the f-5? Where would it go on this list? I personally love it, It’s small, light, cheap, maintainable, agile and in it’s days as an aggressor aircraft for the US navy and air force it was kicking the crap out of the then new super expensive and complex fighters like the f-14, and f-15 in close range dogfights. Of course that was until the rules of the fights were changed to focus more on long range radar combat, in which the f-5 STILL maintain a great kill ratio against fighters that were way more expensive. In the hands of the right pilot it could probably beat most aircraft flying today. With a bigger engines, a slightly more refined LERX, and modern infrared missiles it’d probably be unbeatable!!!!
Also I’d think the f-14 would fall into the category with the su-27 family. I know it doesn’t have LERX like the others in the family but it pioneered twin engined, lifting body with the space in between the engine intakes (instead of traditional fuselage set up), mach 2+ speed, huge powerful radar, and although it didn’t have a great T/W ratio, at the time it demonstrated that a very large aircraft can still be relatively agile just like the flankers. According to air power australia the russians got a chance to study Iranian F-14 tomcats and took some of it’s design elements into consideration when developing the Flanker.
F-5 would probably go into its own family. And yeah, it was excellent. I don’t think it would be able to beat Gripen for example, even with changes you propose.
F-14 wouldn’t go into the Su-27 family as air intakes are positioned in a different way, and it is a swing-wing design. Plus it isn’t really agile, F-15 is actually far more agile.
The F-14 had better low-speed agility than the F-15, hence the Eagle pilot mantra of “…never go slow with the gents in the F-14”. The F-14 could also outmaneuver the A-4 Skyhawk and T-38 Talon. IIRC two Dutch F-16s could not get into a good firing position on a single GE F110-powered F-14B from VF-74 Bedevillers during an ACM training hop near NAS Sigonella in Sicily circa early 1990s. During an unauthorised guns-only 1 V 1 mock dogfight at AIMVAL/ACEVAL the TF30-powered F-14A emerged victorious over the F-15.
You said the F-22 couldn’t beat European fighters at dogfighting. Well I guess that doesn’t mean it can’t beat Russian aircraft at dogfighting.
Eurocanards – especially Rafale and Gripen – are easily the best dogfighters in the world. But yes, Su-27 and related variants will be a tough nut to crack in WVR even for the F-22, and impossible to crack for the F-35.
Difficult to crack yes, However not impossible. The F-22 could probably match up with the SU-27 in WVR however it will be very difficult to take it down. Could the F-22 take down SU-27s though yes F-4 Phantoms took down MIG-21s during Vietnam and by the way F-4 Phantoms were not bad aircraft. If you remove all the SAM kills of the Vietnam war then only 89 F-4 Phantoms would be shot down. The USAF said that future warfare would be fought with missiles they were right! History likes to repeat itself so I believe the F-22 still has a fighting chance to prove itself in combat. The F-22 is just a more maneuverable, stealth F-4. Which is not a bad thing.
Also when you say not necessarily are you referring to the first sentence or the second one?
You are missing few things… air war in Vietnam was mostly fought with missiles, but F-4s kill/loss ratio improved substantially once it received gun and pilots received dogfighting training… missiles have a minimum range (and minimum effective range, which is far greater than minimum range as stated) and if aircraft has no gun (like some F-35 variants), then the enemy can keep close in to deny an effective missile shot.
And F-22 is stealth!F-15, that’s about it.
Yeah but F-22 has a gun and is more maneuverable than any of its American predecessors. Like the F-15 for example has only a small opportunity to get a kill on the F-22…
Though I do have a question, Do you think F-22 is good? (Against Russian aircraft, SU-27,MIG-35, etc). Its similar to the F-15 except it has a couple more features that make it high maintenance and high cost.
One on one, F-22 is quite good. But wars are never one-on-one, and F-22s numbers and sortie rate mean that it will have a minor impact against any enemy stronger than Sweden.
Yeah I agree the F-22 has too little numbers to ever be used as a main fighter. Which is why we’re keeping the F-15 until 2025 Then 5 years later in 2030 if the F-22 can hold the skies for a little bit and it can, Then we may come up with a great fighter.
F-16 has beat what was supposed to counter it, The MIG-29. A Danish F-16 scrambled to shoot down a Serbian MIG-29 and it shot it down, It also shot down a MIG-25 when it crossed the no fly zone. It is truly a good aircraft, Perhaps the best one that the US has ever made. Here are a couple links
Yeah, F-16 is excellent, though to be fair Serb MiG-29s were not very well maintained, had quite a few systems inoperable (RWRs, jammers, in some cases even radar) and pilots flew very few hours.
Todays Mig would crush the the F -16 and the euro canards. The old mig was rushed into production with poor avionics, almost non existent electronic countermeasures and RWR, lack of fly by wire, huge smoky engines, and limited fuel capacity.
Even with all these limitations the Mig 29 was still a handful to deal with for the western pilots. Ask the Germans who used to fly them about how much American, British, and French ass they used to kick in DACT.
The Mig of today however, has aesa radar, improved IRST, advanced fly by wire, fully digital cockpit, drfm jamming improved range some of the deadliest short range missiles in the world, and still the best rate of climb of any aircraft in the world. And that’s to say nothing of it’s already unrivaled controllability and slow speed maneuvering. It’s much more agile than the big heavy flankers. The only advantage the flankers have is the excellent range.
Mig 29 fully developed and in the right hands is the best fighter jet in the world.
“Todays Mig would crush the the F -16 and the euro canards.”
F-16, probably, Eurocanards, not likely.
“Even with all these limitations the Mig 29 was still a handful to deal with for the western pilots. ”
In right hands, yes.
“And that’s to say nothing of it’s already unrivaled controllability and slow speed maneuvering.”
Rafale was flown at 18 kts in a dogfight against Mirage 2000, and Rafale and Gripen can match, and surpass, MiG-29s low speed maneuverability.
“Mig 29 fully developed and in the right hands is the best fighter jet in the world.”
I’d say that Rafale fits that title better.
You should put F-2A Viper Zero in the F-16 family
Mig29 m2 has a better rate of climb, thrust to weight ratio, better top speed at both high and low altitude then both the rafale and gripen. Also the rafale IRST is inferior to the latest russian OLS.
“Rafale was flown at 18 kts in a dogfight against Mirage 2000”
That’s a totally pointless anecdotal story. Most carrier born fighters are capable of achieving insanely slow speed flight. The idea that this kinds of speeds are anything even remotely close to useful in a dogfight are laughable. The only fate that awaits anyone stupid enough to go that slow in a fight is certain death.
At high dogfighting altitude and speeds the Mig29 m2 is easily superior to the eurocanards. The rafale is designed with dogfighting as a secondary function and performs better at transonic speeds. It is essentially just an f-16 on steroids. The mig was designed for supersonic speed combat at high altitude where big boys like the f-22, f-15, and flankers play, its excellent acceleration, top speed, combined with top notch slow speed agility and world class short ranged optical detection, jammers and weapons system makes it far superior to the rafale. You put way too much praise on the rafale. It’s good but it’s not the best. It doesn’t stand out from contemporaries like the gripen, F-2, Eurofigter, f-18e, J-10, and f-16s in any particular categories. In fact in some ways it’s inferior to some of those fighters due to it’s high cost.
From an F-16 Fighter pilot’s perspective
I’ve got over 500 hours in the MiG-29 and 2000 hours in the F-16 (I also flew the F-15A/C and the F-5E). The following is an excerpt from a research papaer I wrote while working on a Master’s DEGREE IN aerospace engineering. Bottom line: F16 (and F-15) good, MiG-29 bad.
MiG-29 Fulcrum Versus F-16 Viper
The baseline MiG-29 for this comparison will be the MiG-29A (except for 200 kg more fuel and an internal jammer, the MiG-29C was not an improvement over the MiG-29A), as this was the most widely deployed version of the aircraft. The baseline F-16 will be the F-16C Block 40. Although there is a more advanced and powerful version of the F-16C, the Block 40 was produced and fielded during the height of Fulcrum production.
A combat loaded MiG-29A tips the scales at approximately 38, 500 pounds. This figure includes a full load of internal fuel, two AA-10A Alamo missiles, four AA-11 Archer missiles, 150 rounds of 30mm ammunition and a full centerline 1,500 liter external fuel tank. With 18,600 pounds of thrust per engine, this gives the Fulcrum a takeoff thrust-to-weight ratio of 0.97:1. A similarly loaded air-to-air configured F-16 Block 40 would carry four AIM-120 AMRAAM active radar-guided missiles, two AIM-9M IR-guided missiles, 510 rounds of 20mm ammunition and a 300 gallon external centerline fuel tank. In this configuration, the F-16 weighs 31,640 pounds. With 29,000 pounds of thrust, the F-16 has a takeoff thrust-to-weight ratio of 0.92:1. The reader should be cautioned that these thrust-to-weight ratios are based on uninstalled thrust. Once an engine is installed in the aircraft, it produces less thrust than it does on a test stand due to the air intake allowing in less air than the engine has available on the test stand.
The actual installed thrust-to-weight ratios vary based on the source. On average, they are in the 1:1 regime or better for both aircraft. The centerline fuel tanks can be jettisoned and probably would be if the situation dictated with an associated decrease in drag and weight and an increase in performance.
Both aircraft display good performance throughout their flight regimes in the comparison configuration. The MiG-29 enjoys a speed advantage at high altitude with a flight manual limit of Mach 2.3. The F-16’s high altitude limit is
Mach 2.05 but this is more of a limit of inlet design. The MiG-29 has variable geometry inlets to control the shock wave that forms in the inlet and prevent supersonic flow from reaching the engine. The F-16 employs a simple fixed-geometry inlet with a sharp upper lip that extends out beyond the lower portion of the inlet. A shock wave forms on this lip and prevents the flow in the intake from going supersonic. The objective is to keep the air going into the engine subsonic unlike a certain ‘subject matter expert’ on this website who thinks that the air should be accelerated to even higher speeds than the aircraft is traveling. Supersonic air in the compressor section? That’s bad.
Both aircraft have the same indicated airspeed limit at lower altitudes of
810 knots. This would require the centerline tanks to be jettisoned. The placard limits for the tanks are 600 knots or Mach 1.6 (Mach 1.5 for the MiG-29) whichever less is. It was the researcher’s experience that the MiG-29 would probably not reach this limit unless a dive was initiated. The F-16 Block 40 will easily reach 800 knots on the deck. In fact, power must be reduced to avoid exceeding placard limits. The limit is not thrust, as the F-16 has been test flown on the plus side of 900 knots. The limit for the F-16 is the canopy. Heating due to air friction at such speeds will cause the polycarbonate canopy to get soft and ultimately fail.
The MiG-29 and F-16 are both considered 9 G aircraft. Until the centerline tank is empty, the Fulcrum is limited to four Gs and the Viper to seven Gs. The
MiG-29 is also limited to seven Gs above Mach 0.85 while the F-16, once the centerline tank is empty (or jettisoned) can go to nine Gs regardless of airspeed or Mach number. The MiG-29’s seven G limit is due to loads on the vertical stabilizers. MAPO has advertised that the Fulcrum could be stressed to 12 Gs and still not hurt the airframe. This statement is probably wishful and boastful. The German Luftwaffe, which flew its MiG-29s probably more aggressively than any other operator, experienced cracks in the structure at the base of the vertical tails. The F-16 can actually exceed nine Gs without overstressing the airframe. Depending on configuration, momentary overshoots to as much as 10.3 Gs will not cause any concern with aircraft maintainers.
Of the four fighters I have flown, the MiG-29 has by far the worst handling qualities. The hydro-mechanical flight control system uses an artificial feel system of springs and pulleys to simulate control force changes with varying airspeeds and altitudes. There is a stability augmentation system that makes the aircraft easier to fly but also makes the aircraft more sluggish to flight control inputs. It is my opinion that the jet is more responsive with the augmentation system disengaged. Unfortunately, this was allowed for demonstration purposes only as this also disengages the angle-of-attack (AoA) limiter. Stick forces are relatively light but the stick requires a lot of movement to get the desired response. This only adds to sluggish feeling of the aircraft. The entire time you are flying, the stick will move randomly about one-half inch on its own with a corresponding movement of the flight control surface. Flying the Fulcrum requires constant attention. If the pilot takes his hand off the throttles, the throttles probably won’t stay in the position in which they were left. They’ll probably slide back into the ‘idle’ position.
The Fulcrum is relatively easy to fly during most phases of flight such as takeoff, climb, cruise and landing. However, due to flight control limitations, the pilot must work hard to get the jet to respond the way he wants. This is especially evident in aggressive maneuvering, flying formation or during attempts to employ the gun. Aerial gunnery requires very precise handling in order to be successful. The MiG-29’s handling qualities in no way limit the ability of the pilot to perform his mission, but they do dramatically increase his workload. The F-16’s quadruple-redundant digital flight control system, on the other hand, is extremely responsive, precise and smooth throughout the flight regime.
There is no auto-trim system in the MiG-29 as in the F-16. Trimming the aircraft is practically an unattainable state of grace in the Fulcrum. The trim of the aircraft is very sensitive to changes in airspeed and power and requires constant attention. Changes to aircraft configuration such as raising and lowering the landing gear and flaps cause significant changes in pitch trim that the pilot must be prepared for. As a result, the MiG-29 requires constant attention to fly. The F-16 auto-trims to one G or for whatever G the pilot has manually trimmed the aircraft for.
The MiG-29 flight control system also has an AoA limiter that limits the allowable AoA to 26°. As the aircraft reaches the limit, pistons at the base of the stick push the stick forward and reduce the AoA about 5°. The pilot has to fight the flight controls to hold the jet at 26°. The limiter can be overridden, however, with about 17 kg more back pressure on the stick. While not entirely unsafe and at times tactically useful, care must be taken not to attempt to roll the aircraft with ailerons when above 26° AoA. In this case it is best to control roll with the rudders due to adverse yaw caused by the ailerons at high AoA. The F-16 is electronically limited to 26° AoA. While the pilot cannot manually override this limit it is possible to overshoot under certain conditions and risk departure from controlled flight. This is a disadvantage to the F-16 but is a safety margin due its lack of longitudinal stability. Both aircraft have a lift limit of approximately
The ultimate comparison of two fighter aircraft comes down to a combat duel between them. After the Berlin Wall came down the reunified Germany inherited 24 MiG-29s from the Nationale Volksarmee of East Germany. The lessons of capitalism were not lost on MAPO-MiG (the Fulcrum’s manufacturer) who saw this as an opportunity to compare the Fulcrum directly with western types during NATO training exercises. MAPO was quick to boast how the MiG-29 had bested F-15s and F-16s in mock aerial combat. They claimed a combination of the MiG’s superior sensors, weapons and low radar cross section allowed the Fulcrum to beat western aircraft. However, much of the early exploitation was done more to ascertain the MiG-29’s capabilities versus attempting to determine what the outcome of actual combat would be. The western press was also quick to pick up on the theme. In 1991, Benjamin Lambeth cited an article in Jane’s Defence Weekly which stated that the German MiG-29s had beaten F-16s with simulated BVR range shots of more than 60 km. How was this possible when the MiG-29 cannot launch an AA-10A Alamo from outside about 25 km? Was this a case of the fish getting bigger with every telling of the story? The actual BVR capability of the MiG-29 was my biggest disappointment. Was it further exposure to the German Fulcrums in realistic training that showed the jet for what it truly is? It seems that MAPO’s FREE ADVERTISING backfired in the end as further orders were limited to the 18 airplanes sold to Malaysia.
If F-16Cs and MiG-29s face off in aerial combat, both would detect each other on the radar at comparable range. Armed with the AIM-120 AMRAAM, the F-16s would have the first shot opportunity at more than twice the range as the Fulcrums. A single F-16 would be able to discriminately target individual and multiple Fulcrums. The MiG-29’s radar will not allow this. If there is more than one F-16 in a formation, a Fulcrum pilot would not know exactly which F-16 the radar had locked and he can engage only one F-16 at a time. A Viper pilot can launch AMRAAMS against multiple MiG-29s on the first pass and support his missiles via data link until the missiles go active. He can break the radar lock and leave or CONTINUE to the visual arena and employ short range infrared guided missiles or the gun. The Fulcrum pilot must wait until about 13 nautical miles (24 kilometers) before he can shoot his BVR missile. The Alamo is a semi-active missile that must be supported by the launching aircraft until impact. This brings the Fulcrum pilot closer to the AMRAAM. In fact, just as the the Fulcrum pilot gets in range to fire an Alamo, the AMRAAM is seconds away from impacting his aircraft. The advantage goes to the F-16.
What if both pilots are committed to engage visually? The F-16 should have the initial advantage as he knows the Fulcrum’s exact altitude and has the target designator box in the head-up display (HUD) to aid in visual acquisition. The Fulcrum’s engines smoke heavily and are a good aid to gaining sight of the adversary. Another advantage is the F-16’s large bubble canopy with 360° field-of-view. The Fulcrum pilot’s HUD doesn’t help much in gaining sight of the F-16. The F-16 is small and has a smokeless engine. The MiG-29 pilot sets low in his cockpit and visibility between the 4 o’clock and 7 o’clock positions is virtually nonexistent.
Charts that compare actual maneuvering performance of the two aircraft are classified. It was the researcher’s experience that the aircraft have comparable initial turning performance. However, the MiG-29 suffers from a higher energy bleed rate than the F-16. This is due to high induced drag on the airframe during high-G maneuvering. F-16 pilots that have flown against the Fulcrum have made similar observations that the F-16 can sustain a high-G turn longer. This results in a turn rate advantage that translates into a positional advantage for the F-16.
The F-16 is also much easier to fly and is more responsive at slow speed.
The Fulcrum’s maximum roll rate is 160° per second. At slow speed this decreases to around 20° per second. Coupled with the large amount of stick movement required, the Fulcrum is extremely sluggish at slow speed. Maneuvering to defeat a close-range gun shot is extremely difficult if the airplane won’t move. For comparison, the F-16’s slow speed roll rate is a little more than 80° per second.
A lot has been written and theorized about the so-called “Cobra Maneuver” that impresses people at airshows. MAPO claimed that no western fighter dare do this same maneuver in PUBLIC. They also claimed that the Cobra could be used to break the radar lock of an enemy fighter (due to the slow airspeed, there is no Doppler signal for the radar to track) or point the nose of the aircraft to employ weapons. Western fighter pilots were content to let the Russians brag and hope for the opportunity to see a MiG-29 give up all its airspeed. The fact that this maneuver is prohibited in the flight manual only validates the fact that this maneuver was a stunt. Lambeth was the first American to get a flight in the Fulcrum. Even his pilot conceded that the Cobra required a specially prepared aircraft and was prohibited in operational MiG-29 units
Another maneuver performed by the Fulcrum during its introduction to the West is the so-called “Tail Slide”. The nose of the jet is brought to 90° pitch and the airspeed is allowed to decay. Eventually, the Fulcrum begins to “slide” back, tail-first, until the nose drops and the jet begins to fly normally again. The Soviets boasted this maneuver demonstrated how robust the engines were as this would cause western engines to flameout. The first maneuver demonstrated to me during my F-15 training was the Tail Slide. The engines did not flameout.
The MiG-29 is not without strong points. The pilot can override the angle of attack limiter. This is especially useful in vertical maneuvering or in last ditch attempts to bring weapons to bear or defeat enemy shots. The HMS and AA-11 Archer make the Fulcrum a deadly foe in the visual arena. The AA-11 is far superior to the American AIM-9M. By merely turning his head, the MiG pilot can bring an Archer to bear. The one limitation, however, is that the Fulcrum pilot has no cue as to where the Archer seeker head is actually looking. This makes it impossible to determine if the missile is tracking the target, a flare, or some other hot spot in the BACKGROUND. (Note: the AIM-9X which is already fielded on the F-15C, and to be fielded on the F-16 in 2007, is far superior to the AA-11)
Fulcrum pilots have enjoyed their most success with the HMS/Archer combination in one versus one training missions. In this sterile environment, where both aircraft start within visual range of each other, the MiG-29 has a great advantage. Not because it is more maneuverable than the F-16. That is most certainly not the case regardless of the claims of the Fulcrum’s manufacturer and numerous other misinformed propaganda sources. The weapon/sensor integration with the HMS and Archer makes close-in missile employment extremely easy for the Fulcrum’s pilot. My only one versus one fight against a MiG-29 (in something other than another MiG-29) was flown in an F-16 Block 52. This was done against a German MiG-29 at Nellis AFB, Nevada. The F-16 outturned and out-powered the Fulcrum in every situation.
The Fulcrum’s gun system is fairly accurate as long as the target does not attempt to defeat the shot. If the target maneuvers, the gunsight requires large corrections to get back to solution. Coupled with the jet’s imprecise handling, this makes close-in maneuvering difficult. This is very important when using the gun. Although the Fulcrum has a 30 mm cannon, the muzzle velocity is no more than the 20 mm rounds coming out of the F-16’s gun. The MiG’s effective gun range is actually less than that of the F-16 as the 20 mm rounds are more aerodynamic and maintain their velocity longer.
If the fight lasts very long, the MiG pilot is at a decided disadvantage and must either kill his foe or find a timely opportunity to leave the fight without placing himself on the defensive. The Fulcrum A holds only 300 pounds more internal fuel than the F-16 and its two engines go through it quickly. There are no fuel flow gauges in the cockpit. Using the clock and the fuel gauge, in full afterburner the MiG-29 uses fuel 3.5 to 4 times faster than the Viper. My shortest MiG-29 sortie was 16 minutes from brake release to touchdown.
It should not be forgotten that fights between fighters do not occur in a vacuum. One-versus-one comparisons are one thing, but start to include other fighters into the fray and situational awareness (SA) plays an even bigger role. The lack of SA-building tools for MiG-29 pilots will become an even bigger factor if they have more aircraft to keep track of. Poor radar and HUD displays, poor cockpit ergonomics and poor handling qualities added to the Fulcrum pilot’s workload and degraded his overall SA. It was my experience during one-versus-one scenarios emphasizing dogfighting skills, the results came down to pilot skill.
In multi-ship scenarios, such as a typical four versus four training mission, the advantage clearly went to the side with the highest SA. Against F-15s and F-16s in multi-ship fights, the MiG-29s were always outclassed. It was nearly impossible to use the great potential of the HMS/Archer combination when all the Eagles and Vipers couldn’t be accounted for and the Fulcrums were on the defensive. The MiG-29’s design was a result of the Soviet view on tactical aviation and the level of technology available to their aircraft industry. The pilot was not meant to have a lot of SA. The center of fighter execution was the ground controller. The pilot’s job was to do as instructed and not to make independent decisions. Even the data link system in the MiG-29 was not meant to enhance the pilot’s SA. He was merely linked steering, altitude and heading cues to follow from the controller. If the MiG-29 pilot is cut off from his controller, his autonomous capabilities are extremely limited. Western fighter pilots are given the tools they need to make independent tactical decisions. The mission commander is a pilot on the scene. All other assets are there to assist and not to direct. If the F-16 pilot loses contact with support assets such as the E-3 Airborne Warning and Control System (AWACS) aircraft, he has all the tools to complete the mission autonomously.
The combat record of the MiG-29 speaks for itself. American F-15s and F-
16s (a Dutch F-16 shot down a MiG-29 during Operation Allied Force) have downed MiG-29s every time there has been encounters between the types. The only known MiG-29 “victories” occurred during Operation Desert Storm when an Iraqi MiG-29 shot down his own wingman on the first night of the war and a Cuban MiG-29 brought down 2 “mighty” Cessnas. Are there more victories for the Fulcrum? Not against F-15s or F-16s.
Designed and built to counter the fourth generation American fighters, The MiG-29 Fulcrum was a concept that was technologically and doctrinally hindered from the beginning. Feared in the west prior to the demise of the Soviet Union, it was merely an incremental improvement to the earlier Soviet fighters it replaced. Its lack of a market when put in direct competition to western designs should attest to its shortcomings. The German pilots who flew the aircraft said that the MiG-29 looked good at an airshow but they wouldn’t have wanted to take one to combat. Advanced versions such as the SMT and MiG-33? Certainly better but has anyone bought one?
Lt. Col. Johann Köck, commander of the German MiG-29 squadron from
September 1995 to September 1997, was outspoken in his evaluation of the Fulcrum. “It has no range, its navigation system is unreliable and the radar breaks often and does not lend it self to autonomous operations”, he said. He added that the best mission for NATO MiG-29s would be as a dedicated adversary aircraft for other NATO fighters and not as part of NATO’s frontline fighter force.
LikeLiked by 1 person
“Mig29 m2 has a better rate of climb, thrust to weight ratio, better top speed at both high and low altitude then both the rafale and gripen. Also the rafale IRST is inferior to the latest russian OLS.”
MiG-29M2 has significantly higher wing loading than Rafale (398 kg/m2 vs 275 kg/m2 at combat weight), and its thrust to weight ratio is similar to Rafale C’s (1,02 vs 1,01 at air-to-air takeoff weight, and 1,19 vs 1,20 at combat weight). Climb rate is actually similar (330 m/s vs 305 m/s). Top speed is less important than cruise speed, which is where Rafale has advantage. As for the OLS, I know that the OLS-35 has significantly inferior detection range compared to the OSF (50/90 km vs 80/130 km).
“The idea that this kinds of speeds are anything even remotely close to useful in a dogfight are laughable.”
Slow speed maneuvering isn’t very useful period, you want to keep at or above the corner speed (350 kts for Rafale). That being said, keeping at higher speeds may not always be possible.
“At high dogfighting altitude and speeds the Mig29 m2 is easily superior to the eurocanards.”
Wrong. Rafale’s close coupled canards give it far superior transient performance (turn onset, roll onset) to anything else out there except maybe Gripen.
“The rafale is designed with dogfighting as a secondary function”
Wrong again. Rafale is designed as air superiority fighter first and foremost, and maneuvering combat received a great deal of attention.
“It is essentially just an f-16 on steroids.”
Yes and no. Its primary goals were similar to the F-16 (transonic maneuvering performance), but unlike the F-16 it also has significant supersonic and slow speed maneuvering capability. Greater emphasis on supersonic performance compared to the F-16 is obvious when you compare wing sweep (42* for the F-16, 48* for Rafale).
“The mig was designed for supersonic speed combat at high altitude where big boys like the f-22, f-15, and flankers play, its excellent acceleration, top speed, combined with top notch slow speed agility and world class short ranged optical detection, jammers and weapons system makes it far superior to the rafale.”
Actually, close coupled canards combined with tailless delta allow for excellent supersonic maneuvering capability. There are two main reasons for that – first, lack of horizontal tail eliminates interference drag that tailed aircraft suffer from at supersonic speeds. Second, close coupled canards move the center of lift forward, allowing greater instability, and also reduce its supersonic shift, which means that aircraft with canards will remain unstable at higher speeds than one without canards. At the same time, they prevent air flow separation at high AoA and improve effectiveness of control surfaces, thus improving slow-speed/high AoA maneuvering capability. Only advantage that MiG has is its excellent selection of missiles (particularly BVR missiles), since Rafale went for jack-of-all-trades-master-of-none MICA.
“You put way too much praise on the rafale.”
Because I know it.
“A lot has been written and theorized about the so-called “Cobra Maneuver” that impresses people at airshows. MAPO claimed that no western fighter dare do this same maneuver in PUBLIC. ”
Well the advent of youtube shows the truth about the Cobra maneuver. It was not invented by the Russians but by the Swedes 20 years before when they were flying the Draken. Russians probably saw it in when they were intercepted by the Swedes and had to wait for 20 years to get and aircraft with the performance necessary to perform it.
Here is the video of the Draken doing the Cobra (at 1:52 it’s the first Cobra): https://www.youtube.com/watch?v=jqiDEcfSnXs

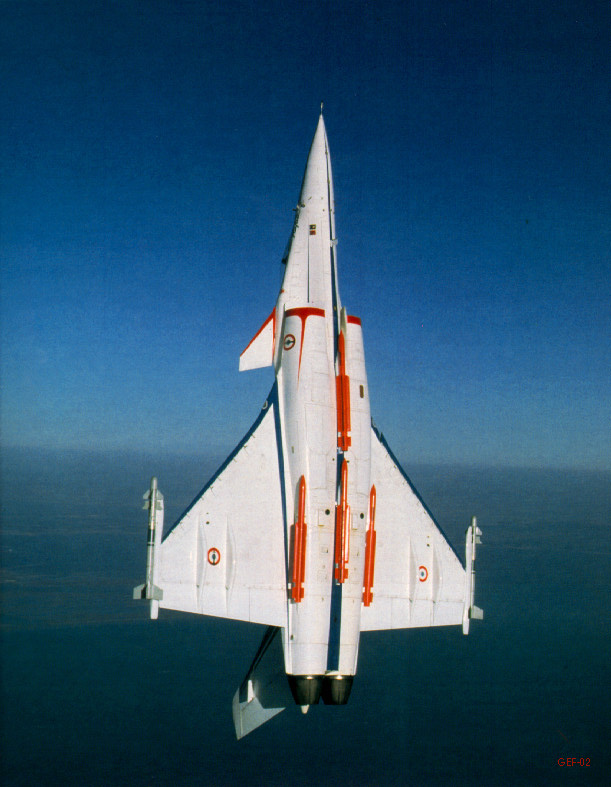

Also both the Rafale and the F-22 performed the Cobra during testing. Here is the pictures with the Rafale A (http://www.flygplan.info/images/Rafale_A.jpg) They only way that image could have been taken at that angle is if it was snapped as the Rafale was overflown during a Cobra. Angle can be ascertained by watching the horizon it’s just above 90 degrees.
The reason why western fighters do not perform the Cobra today is that unlike the Soviet fighters they can not disengage the Alfa limiter as the Alfa limiter is no longer a mechanical feature but it’s integrated directly in the Flight Control Software. In testing with the prototypes the Cobra was performed as the envelope of the aircraft was being determined. But the software for the Automatic Control System during testing is in a very rudimentary state, a lot of the burden falls on the test pilot, the engineers need the data from the flight testing to develop the final version.
Also Picard you should include the Draken in the F-16 family as it had high maneuverability high degree of wing-body blending and it’s Double Delta wing is practically a delta with a very large LERX.
Shouldn’t the F-106 be included also, since it was a follow-on or successor to the F-102?
Thanks. Even though the F-106 used the same engine (J75) as the F-105, it was a much better performing airplane…
